Descending speed is 2 meters or less per second and the speed never exceeds.
Therefore,never dive and any shock.

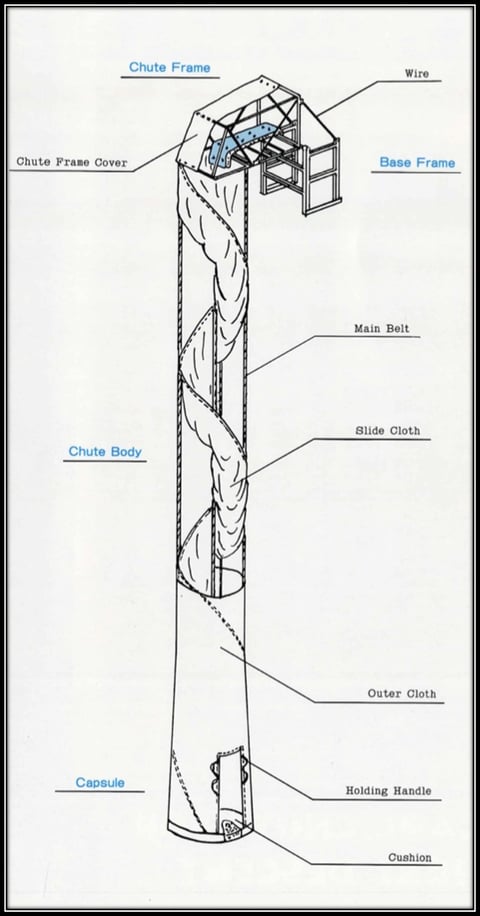

One for sliding,one for outer protection.
Both clothes have high capability for tensility and tear.
These are high quality polyester cloth and the outer cloth is treated"Fire-retardant- process".
Descending form is not vertical, it is gentle spiral direction and at the point of exit
cushion material is sewed in,so no shock by these double and threefold safe design.
We manufacture our chutes by using highest durability materials among various materials
so that our chute is excellent in durability for weather,humidity and other conditions.
We tried and performed to reduce the chute weight as light as possible,
and the desigh as simple as possible,so the operation is easy.
Then,this type chute is used by upper operation only with just evacuation person without any other person's help.
Descending posture is little stooping posture by holding the center belt under
your left arm lightly and bend your legs little.
By this posture you can descend very smoothly.
How to use
●Remove the cabinet cover.
●Lower the chute.
●Set up the entrance frame.
●Enter feets first.
●Bend the knees as far as possible
and descend with the hip first.
●Landing on the ground is shock-free.
NAME : SUPER ACE S-1
FORM : Vertical Descent Type
UYEDA ESCAPE CHUTE CONSTRUCTION CO., LTD.
7-28, KATAMACHI 2-CHOME, MIYAKOJIMA-KU
OSAKA 534-0025 JAPAN
Tel : +81(0)6-6352-0811
Fax : +81(0)6-6352-6035
