【Descent & Safety】
In the case of this sort of escape
chute, descent is not possible unless
the bottom of the chute is held
firmly or hooked on the anchor
installed on the ground.
Therefore, it is necessary to check
the state of extension of the chute
from the window before starting
The escape chute may be regarded
as a slide made of cloth.
Descent in succession one after the
other is possible.
It may be a good idea if the person
extends his legs outward to regulate
the speed of descent.
The chute body is of double-
construction from up to down.
Even if the chute cloth should tear,
the nylon taffeta, the second layer of
cloth which is very strong, prevents
accidental fall of the person through
the torn part.
The chute has a protecting cushion
at the bottom to avoid shock at the
time of landing on the ground.
※Descending angle 45° approx.
How to use

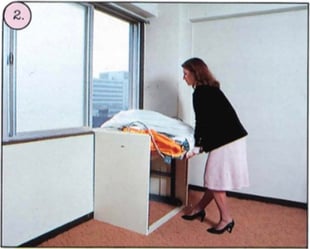

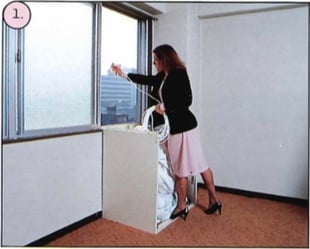

●Remove the cabinet.
Throw the guide rope down.

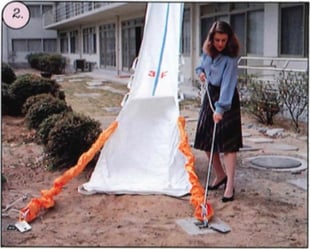

●Let the chute main body slide down
on the ground.
Pull up the entrance frame.
●Descend with your legs first.

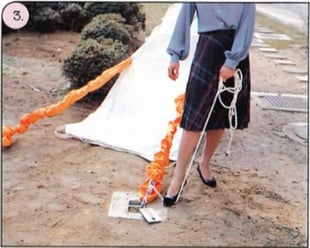

●Loosen the guide rope.
Hang the hook to the lower part
●Pull the rope between the pulleys.
●Fix the pulley rope.
NAME : ACE R
FORM : Incline Escape Chute (Descending Angle 45° Approx.)
UYEDA ESCAPE CHUTE CONSTRUCTION CO., LTD.
7-28, KATAMACHI 2-CHOME, MIYAKOJIMA-KU
OSAKA 534-0025 JAPAN
Tel : +81(0)6-6352-0811
Fax : +81(0)6-6352-6035
